Falk Disc Flexible Coupling

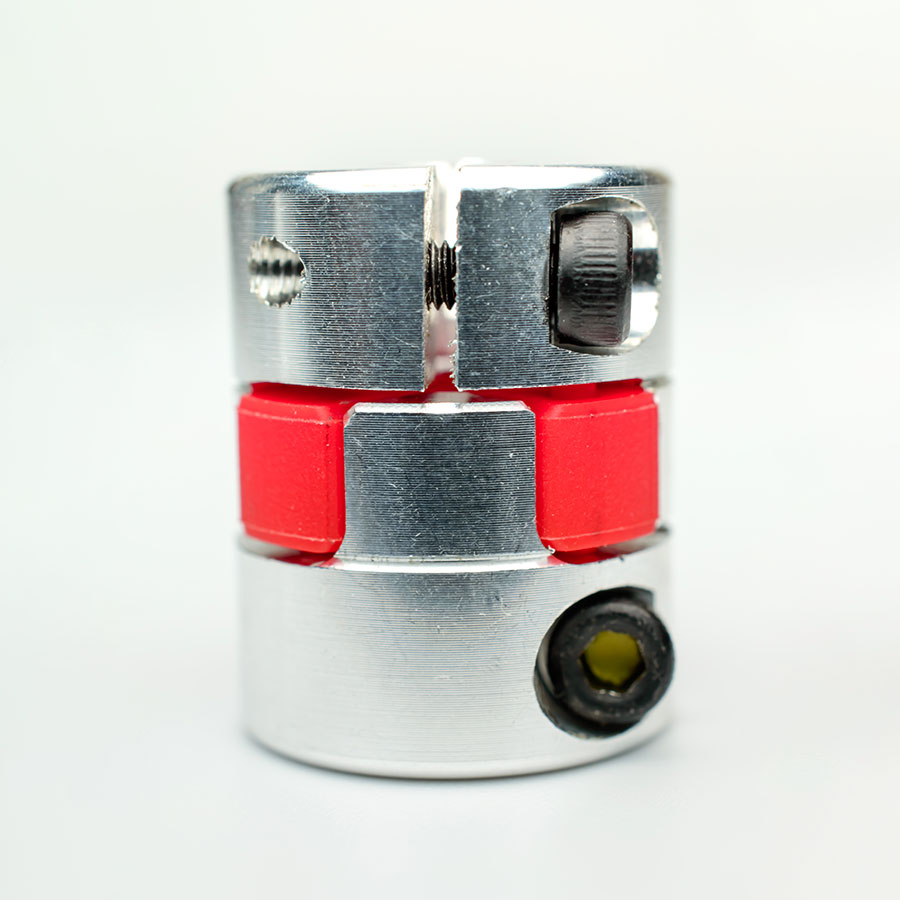

CBC provides high quality Jaw Couplings which are resistant to oil, grease and many solvents. With wide industrial applications, FALK Jaw Couplings have good atmospheric and chemical resistance.
swipe horizontally to read more
| Dimensions of Jaw Couplings | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | Bore Dia(mm) | Basic torque (kg.m) |
Torsion angle | Dimensions (mm) | ||||||
| min | max | D | A | T | B | G | weight | |||
| 25 | 5 | 11 | 0.4 | 3.2¢ª | 25 | 12 | 11 | 35 | 1 | 0.08 |
| 35 | 7 | 14 | 1 | 35 | 18.5 | 13 | 50 | 1.5 | 0.3 | |
| 48 | 11 | 19 | 2.5 | 48 | 24 | 17 | 65 | 1.5 | 0.5 | |
| 58 | 14 | 24 | 3.4 | 58 | 27 | 18 | 72 | 1.5 | 0.9 | |
| 68 | 19 | 28 | 12 | 68 | 35 | 20 | 90 | 1.5 | 1.3 | |
| 78 | 19 | 38 | 32 | 78 | 35 | 22 | 92 | 1.5 | 2.5 | |
| 98 | 28 | 45 | 65 | 98 | 38.5 | 25 | 102 | 2.5 | 4.4 | |
| 118 | 38 | 60 | 90 | 118 | 47 | 26 | 120 | 3 | 7.8 | |
| 135 | 42 | 75 | 125 | 135 | 46 | 33 | 125 | 3.5 | 10 | |
| 160 | 65 | 100 | 293 | 160 | 69 | 39 | 177 | 5 | 19.5 | |
| 200 | 65 | 110 | 990 | 200 | 105 | 30 | 250 | 5 | 36 | |
swipe horizontally to read more
| Size | Bore Dia(mm) | Basic Torque(kg.m) | Torsion angle | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | D | A | T | B | G | weight | |||
| 25 | 5 | 11 | 0.4 | 3.2¢ª | 25 | 12 | 11 | 35 | 1 | 0.08 |
| 35 | 7 | 14 | 1 | 35 | 18.5 | 13 | 50 | 1.5 | 0.3 | |
| 48 | 11 | 19 | 2.5 | 48 | 24 | 17 | 65 | 1.5 | 0.5 | |
| 58 | 14 | 24 | 3.4 | 58 | 27 | 18 | 72 | 1.5 | 0.9 | |
| 68 | 19 | 28 | 12 | 68 | 35 | 20 | 90 | 1.5 | 1.3 | |
| 78 | 19 | 38 | 32 | 78 | 35 | 22 | 92 | 1.5 | 2.5 | |
| 98 | 28 | 45 | 65 | 98 | 38.5 | 25 | 102 | 2.5 | 4.4 | |
| 118 | 38 | 60 | 90 | 118 | 47 | 26 | 120 | 3 | 7.8 | |
| 135 | 42 | 75 | 125 | 135 | 46 | 33 | 125 | 3.5 | 10 | |
| 160 | 65 | 100 | 293 | 160 | 69 | 39 | 177 | 5 | 19.5 | |
| 200 | 65 | 110 | 990 | 200 | 105 | 30 | 250 | 5 | 36 | |
Specifications and Characteristics of FALK Jaw Couplings
Specifications of FALK Jaw Couplings:
Operating Temperature -34¢ª to 90¢ª, Short Duration Max. Temperature 120¢ª Poly-Urethane spider: 90+5A Shore hardness level, Standard red color. Resistant to oil, grease and many solvents.
Characteristics of FALK Jaw Couplings:
- Good atmospheric and chemical resistance
- Excellent shock and vibration dampening properties
- Hub jaws have unique concave pocket, that eliminates edge pressures and allows prolonged Wear resistance of elastomeric spider
swipe horizontally to read more
| Size No | 25 | 35 | 48 | 58 | 68 | 78 | 98 | 118 | 135 | 160 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Angular misalignment (mm) | 0.15 | 0.2 | 0.4 | 0.8 | 1.0 | 1.4 | |||||
| Parallel misalignment (a¢ª) | 1.3 | ||||||||||
