CBC India is a trusted supplier of Twiflex Caliper Brakes for the heavy-duty industrial market across India. When industries demand a disc brake solution that delivers precise braking force, handles the most severe industrial applications and performs without compromise in the most critical stopping and holding requirements, the answer is Twiflex Caliper Brakes.
As the manufacturer of the world's largest range of industrial disc brake calipers, Twiflex Caliper Brakes are site-proven across mining, wind energy, marine, steel, material handling and heavy industrial applications globally. Twiflex Caliper Brakes keep your operation protected, controlled and running safely shift after shift, year after year.
Design and Engineering

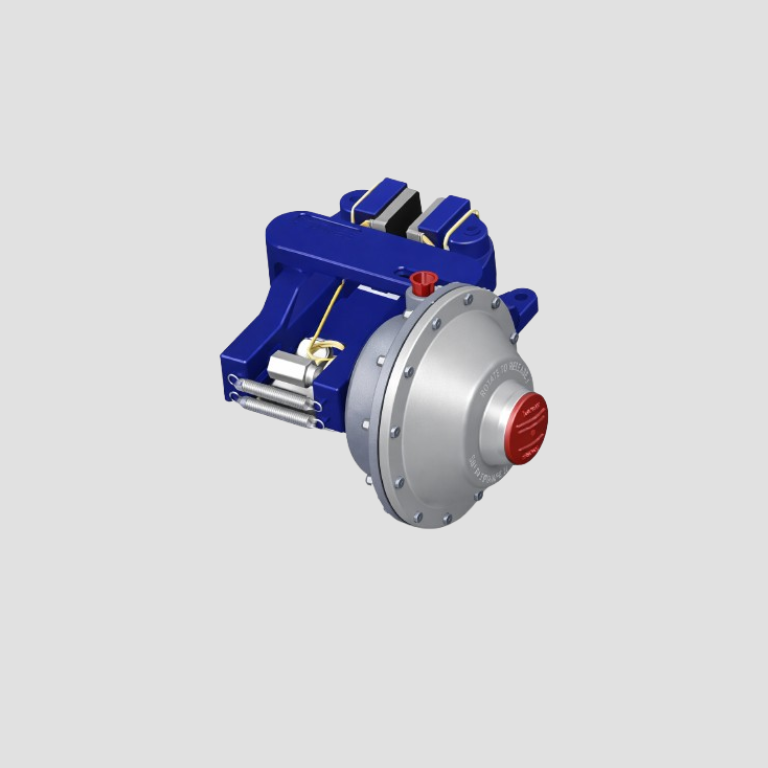

Twiflex Caliper Brakes MR Series are precision-engineered spring-applied disc brake caliper solutions, built for flexible installation, consistent braking performance and long service life across the most demanding industrial applications.
- Handles every disc thickness requirement with MR Series caliper designs suitable for 12.7mm and 25.4mm thick discs, accommodating minimum disc diameters from 250mm and 460mm for MR2 models
- Maximizes installation flexibility with caliper positioning at any angle around the disc periphery, with horizontal mounting at the 3 o'clock or 9 o'clock position delivering optimal braking performance
- Delivers precise, consistent braking torque with performance ratings based on fully bedded and conditioned asbestos-free brake pads at nominal friction coefficient of 0.4 for repeatable, reliable stopping force
- Scales braking capacity to every application requirement with one or two calipers per disc as standard, with additional calipers available to increase total braking torque on larger disc configurations
- Ensures clean, reliable pneumatic operation with dry, filtered and non-lubricated compressed air, controlled through manually or electrically operated control valves
Key Specifications
- Compatible disc thickness: 12.7mm and 25.4mm
- Minimum disc diameter 250mm, MR2 minimum 460mm
- Effective disc radius equals actual radius minus 0.03m for precise torque calculation
- Equalising link required for caliper mounting angles greater than 10 degrees from horizontal and vertical shaft applications
- Twiflex asbestos-free brake pads mandatory for full warranty compliance
Performance Advantages
- Cuts total installation complexity with flexible multi-angle caliper positioning that adapts to every machine layout and space constraint
- Increases braking reliability with fully conditioned brake pad performance ratings that deliver predictable, consistent stopping force across every duty cycle
- Reduces sourcing complexity with a complete range of Twiflex brake discs, hub assemblies and accessories available from a single trusted source through CBC India
Applications
Site-proven in mining hoists, wind turbines, marine winches, steel mill equipment, conveyors, cranes and heavy industrial rotating machinery across power generation, material handling and process industries throughout India.
