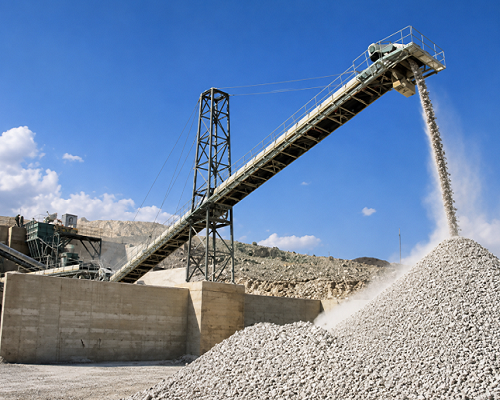

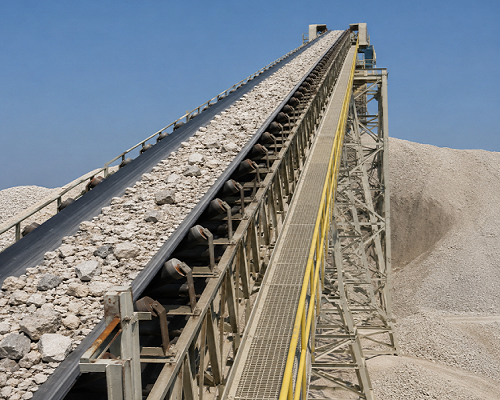

Aggregate Conveyor Belt

We can engineer aggregate conveyor systems to transport:

Parameter	Technical Specification
Product Name	Aggregate Conveyor Belt
Belt Type	Heavy-Duty Conveyor Belt
Application	Handling aggregates, crushed stone, gravel, sand, limestone and bulk materials
Belt Width	300 mm – 2400 mm
Belt Length	As per conveyor layout and customer requirement
Belt Speed	Up to 5 m/s, depending on application
Capacity	Up to 5,000 TPH, depending on belt width, speed and material
Troughing Angle	20° – 45°
Material	Natural Rubber / Synthetic Rubber
Cover Grade	M24 / N17 / M Grade / Custom Grades
Tensile Strength	315 – 3150 N/mm
Top Cover Thickness	3 – 12 mm
Bottom Cover Thickness	1.5 – 6 mm
Carcass	EP Fabric / NN Fabric / Steel Cord
Temperature Range	Approx. -25°C to +80°C, depending on belt compound
Abrasion Resistance	High abrasion resistance for abrasive aggregate materials
Edge Type	Cut Edge / Molded Edge
Jointing Method	Hot Vulcanized / Mechanical Fasteners
Cleat / Profile	Plain / Chevron / Corrugated, as required
Working Conditions	Heavy-duty, continuous material handling
Drive Arrangement	Head Drive / Tail Drive / Center Drive
Standards	DIN / ISO / BIS / RMA, as applicable
Customization	Belt width, strength, thickness, cover grade and construction can be customized
