Corrugated Sidewall Conveyor Belt

CBC India is one of the biggest and genuine suppliers, manufacturers, and exporters of Corrugated Sidewall Conveyor Belts in Mumbai, India.

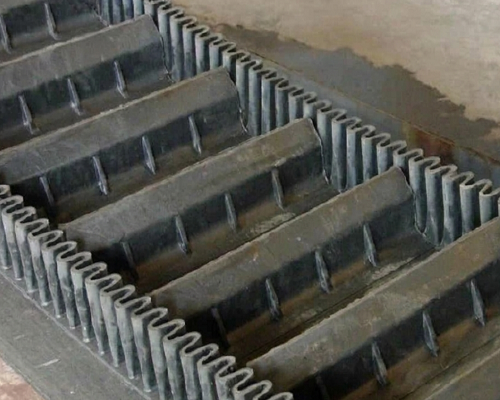

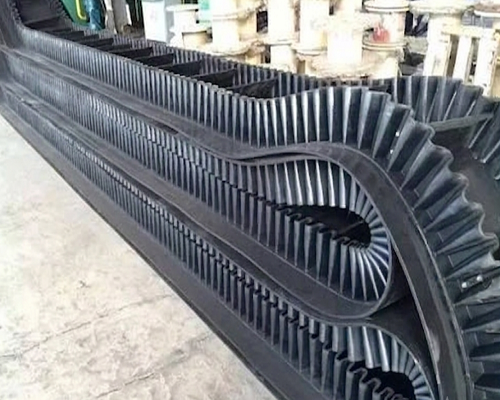

A Corrugated Sidewall Conveyor Belt is always known for its outstanding performance. These belts are special-purpose conveying systems designed for moving bulk materials upward or at steep slopes where traditional flat conveyor belts could not offer enough material holding. The belt is built with higher corrugated sidewalls along its edges, combined with specially designed cleats or partitions on the transporting surface. This setup makes pockets that keep the moved material securely and allows the belts to transport products through incline angles while reducing spilling and material moving backward. The construction of these belts is chosen as per the working condition and material transported. Corrugated sidewalls offer sideways support, while cleats or crosswalls assist in keeping the material within the transporting area while inclined transportation.

CBC India's EP300 conveyor belt is specified for heavy-duty bulk material handling where the EP250

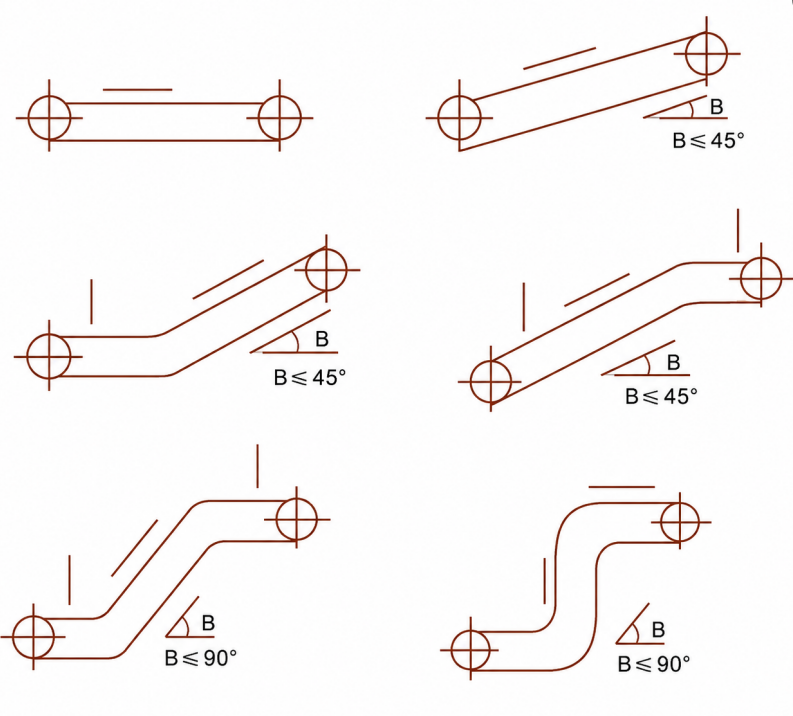

The ability to create improved use of limited plant area is one of the major benefits of a corrugated sidewall conveyor belt. Conventional conveyor solutions frequently need extended horizontal parts when materials need to be raised to a higher level. A sidewall conveyor can manage steep-angle or almost vertical transporting, decreasing the overall conveyor length and assisting industries to improve their available floor space. These belts are generally used in various industries where bulk materials have to be moved between various elevations. They can be used for moving materials like coal, limestone, sand, fertilizers, grains, ores, and other common bulk products. Their specialized conveying system design helps maintain a regulated flow of material all through the conveying process.

CBC India offers solutions for industrial conveyor and large quantity material handling needs, with a focus on belts and transporting systems designed as per application requirements. The company can support industries needing reliable material transportation across various elevations and demanding moving situations. By considering factors like conveyor layout, material features, capacity, inclination, and working conditions, CBC India helps customers to select suitable Corrugated Sidewall Conveyor Belt systems for their manufacturing applications.

Side wall Type

Type	H(mm)	Sw(mm)	Tw (mm)	P(mm)	EST Weight (Kg/m)	Min. Pullley Dia. (mm)
S	40	30	20	25	0.48	125
	60	50	45	40	1.38	160
	80	50	45	40	1.66	200
	100	50	45	40	2.00	250
	120	50	45	40	2.24	315
Diagonal falbric reinforcement is suggested for sidewall higher than 120mm. This carcass reinforcement is also available for sidewall height less than 120mm.
MDSF	120	75	65	63.5	3.88	315
	160	75	65	63.5	4.22	400
	200	75	65	63.5	4.93	500
	240	75	65	63.5	5.92	630
	280	75	65	63.5	7.40	800
	300	75	65	63.5	7.66	800
HHDF	300	100	90	83	12.61	800
	400	100	90	83	15.67	1000
	500	100	95	89	18.78	1250

Cleat Type

Cleat Type	Height (mm)	Cover Thickness(mm)	Weight (kg/m)	Min. Pulley Dia.(mm)
	55	100	1.40	125
	75	100	1.47	150
	90	110	3.01	250
	110	110	3.57	315
	55	100	1.58	125
	75	100	1.82	150
	90	110	2.53	250
	110	110	3.11	315
	140	160	5.70	400
	180	160	6.81	500
	230	160	8.71	630
	55	75	1.17	125
	75	100	1.93	150
	90	110	3.57	250
	110	110	2.38	315
	140	150	5.70	400
	180	150	6.81	500
	230	160	7.85	630
	280	180	14.34	800
	230	160	10.6	630
	280	160	11.95	800
	360	230	24.66	1000
	470	230	31.00	1250
