CBC India is one of the largest Manufacturers, Suppliers, Dealers and Exporters of Long Distance Conveyor Belt in India.

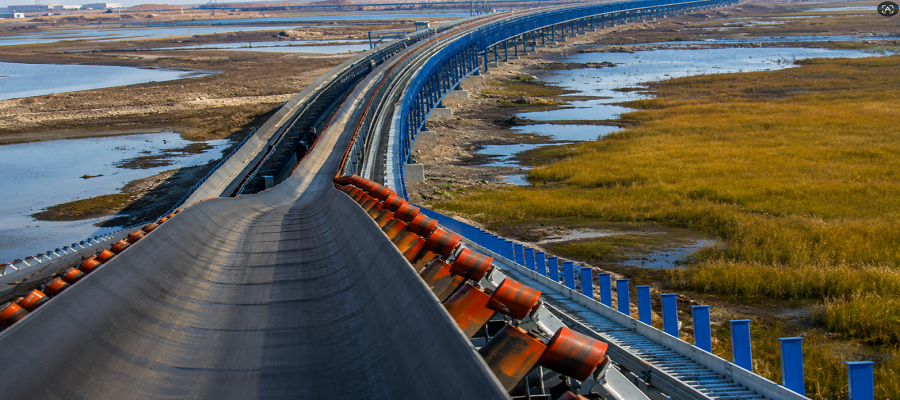

Long Distance Conveyor Belt is a specialized material handling solution designed to transport large-quantity materials effectively over longer distances. This offers a constant material handling solution for various industries where raw materials or finished products need to be transported between processing units, storage areas, loading points, or production facilities. These belts are usually used for managing materials like coal, iron ore, limestone, cement, sand, and other various bulk materials. Long-distance transporting uses may include horizontal paths, inclined sections, curves, and changing areas. To select the belt and conveyor system, you need to pay attention to the factors like conveying distance, material weight, capacity needs, belt speed, operating conditions, and path design.
The construction and strength of the conveyor belt play a crucial role in long-distance usage. One of the important features of these belts is its ability to assist constant transportation over multiple kilometers when needed. A long distance conveyor belt must be capable of transporting the needed load while maintaining balance during continuous working. Based on the usage, various belt builds and reinforcement options may be chosen to offer suitable tensile strength and durability. These conveyor systems can also be designed to observe particular routes and site conditions. In mining operations, for example, materials may require to be moved from the removal area to a processing plant located far away. Another benefit of using a long distance conveyor belt is the possibility of decreasing reliance on several transportation and handling systems within an industrial amenity.
CBC India offers high-quality and reliable long distance conveyor belt solutions designed for effective bulk material transportation. With a focus on excellent quality, outstanding durability, and reliable performance, we provide suitable solutions for various industrial conveying needs and demanding working conditions. The company offers affordable solutions and aims to provide fastest and reliable delivery to our customers worldwide, making CBC India a trustworthy selection for industrial conveyor belt needs.
Standard specifications
| Parameter | Technical Specification |
|---|---|
| Product Type | Long Distance Conveyor Belt |
| Application | Long-Distance Transportation of Bulk Materials over Extended Conveyor Routes |
| Conveyor Length | Several Kilometres, Depending on System Design |
| Belt Width | 500 mm to 2400 mm |
| Belt Speed | 1.5 to 6.5 m/s, depending on application |
| Conveying Capacity | Application and Material Dependent |
| Belt Construction | EP / NN / Steel Cord Reinforced |
| Belt Strength | As Required by Conveyor Length, Load and Operating Conditions |
| Top Cover | Heavy-Duty Abrasion Resistant Rubber |
| Bottom Cover | Wear Resistant Rubber |
| Cover Grade | DIN-Y / DIN-W / Abrasion Resistant Grade |
| Belt Thickness | As Per Belt Strength and Application Requirements |
| Material Handled | Coal, Limestone, Cement, Ore, Minerals, Aggregates, Sand and Other Bulk Materials |
| Inclination | Typically Up to 18° with Standard Smooth Belt |
| Longitudinal Strength | High Tensile Strength for Long Conveyor Runs and High-Tension Applications |
| Flexibility | Designed for Horizontal, Inclined and Curved Conveyor Routes |
| Impact Resistance | High Impact Resistance for Continuous Bulk Material Loading |
| Abrasion Resistance | High Abrasion Resistance for Heavy-Duty Material Handling |
| Drive Arrangement | Single Drive / Multi-Drive / Distributed Drive, as Required |
| Tensioning System | Gravity Take-Up / Hydraulic Take-Up / Screw Take-Up |
| Splicing Method | Hot Vulcanized Splicing / Mechanical Fasteners |
| Edge Construction | Cut Edge / Molded Edge, as Required |
| Temperature Range | Typically -20°C to +80°C, Depending on Rubber Compound |
| Conveyor Compatibility | Suitable for Mining, Cement, Power, Steel, Ports and Bulk Material Handling Systems |
| Customization | Belt Width, Length, Strength, Cover Thickness, Rubber Grade and Construction as per Requirement |
