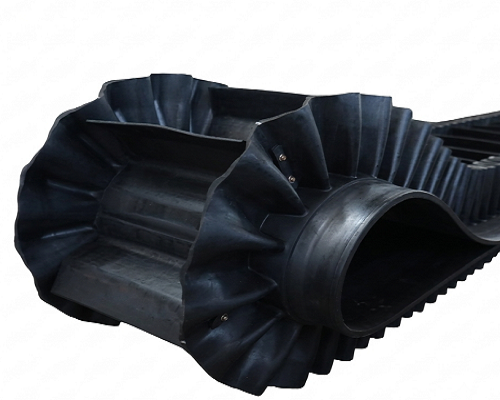

Flexowell Equivalent Conveyor Belt

CBC India is one of the largest Manufacturers, Suppliers, Dealers, Stockists, and Exporters of Flexowell Conveyor Belts in India.

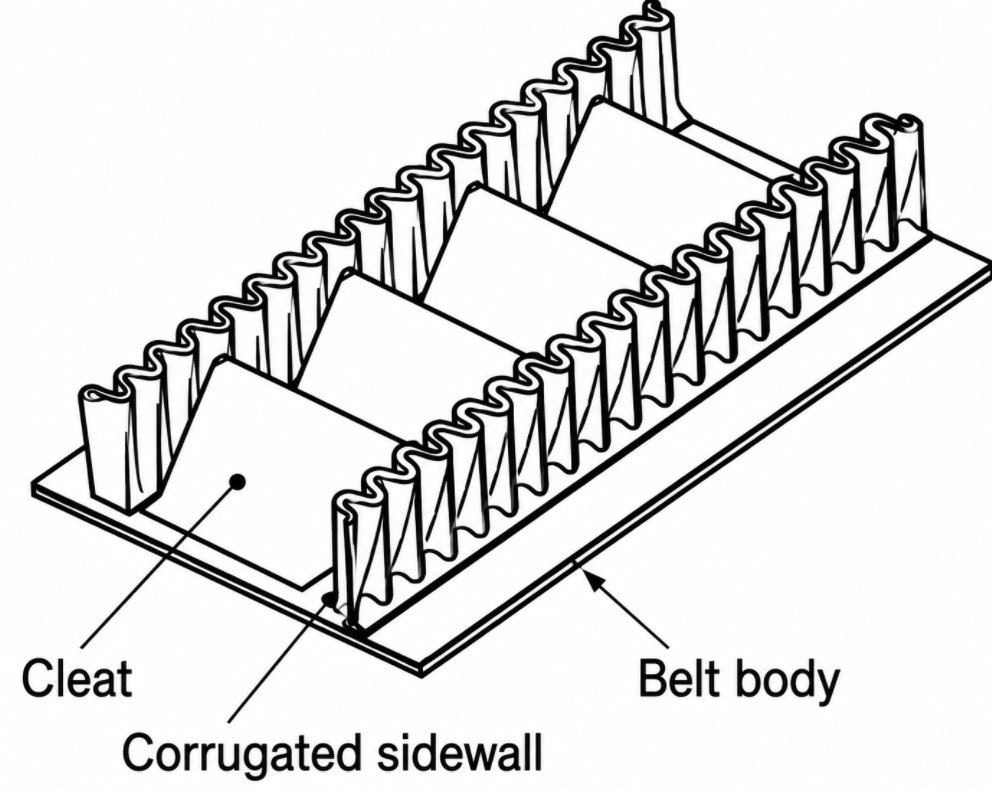

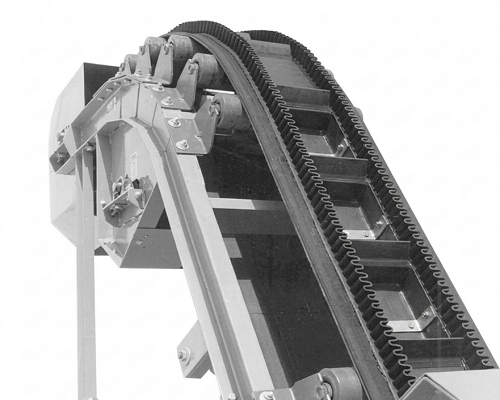

The Flexowell Conveyor Belt has three main components a powerful base belt, corrugated sidewalls, and transverse cleats. These are specialized material handling belts specifically designed to move bulk materials at steep angles and vertical levels. Flexowell Conveyor Belts are widely used in various industries where traditional conveyor systems may require excessive floor area to transport materials between different levels. Their unique structure allows materials to be moved securely and continuously, making them an effective solution for various bulk material handling applications. The base belt provides the needed tensile strength and flexibility for smooth conveying. The corrugated sidewalls are specially designed to prevent materials from spilling off the sides of the belt, while the cleats create separate carrying compartments that support the material during inclined transportation.

The ability to move materials upward or at high inclination is one of the key benefits of a Flexowell Conveyor Belt. Conventional conveyor solutions frequently require a long horizontal distance to achieve the needed height. A Flexowell Conveyor System can transport materials upward within a relatively space-saving footprint compared to other conveyor belts. This advantage helps industries make better use of available space and simplifies the overall material handling setup. These conveyor belts are suitable for moving multiple different types of large-quantity materials, depending on the design and application needs. They can be used for materials like coal, limestone, cement, sand, fertilizers, grains, and other bulk products. Flexowell Conveyor Belts are also used across various industries, including mining, cement, power generation, ports, steel processing, and other sectors that need continuous material conveyance.

CBC India provides Flexowell Conveyor Belt solutions for dependable and effective large-quantity material handling applications. We focus on offering conveyor belt solutions according to specific functional needs, including material characteristics, transporting capacity, slope angle, and operating conditions. With a focus on unmatched quality, durability, and application suitability, CBC India seeks to deliver reliable solutions for multiple industries that need efficient steep-angle and vertical material transportation.

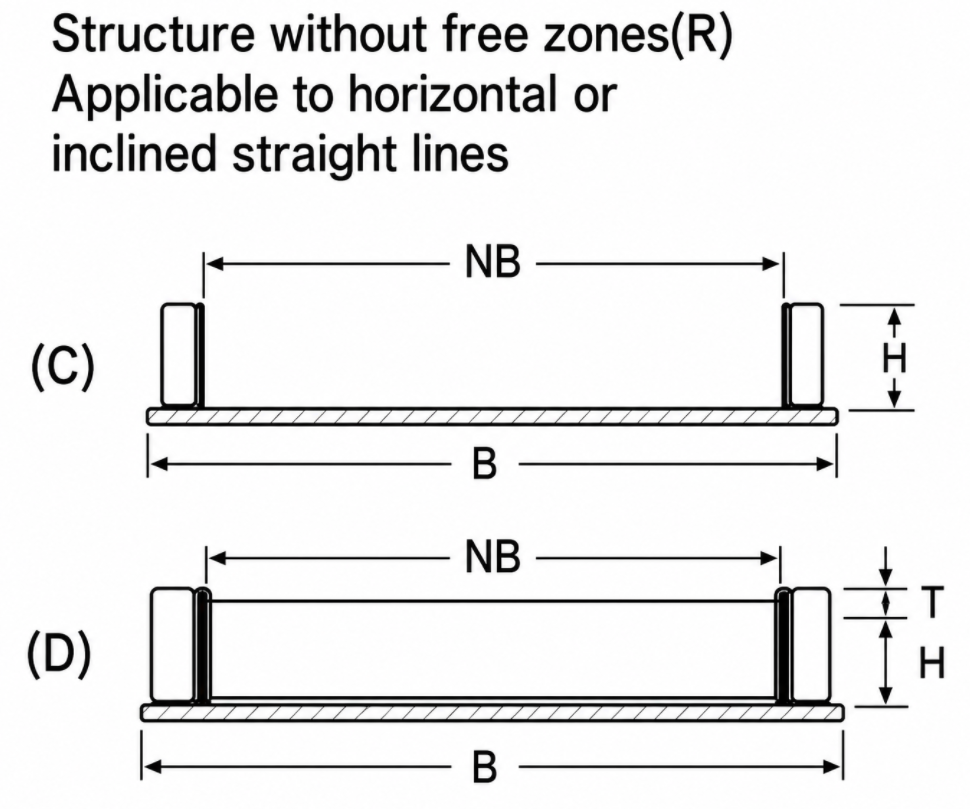

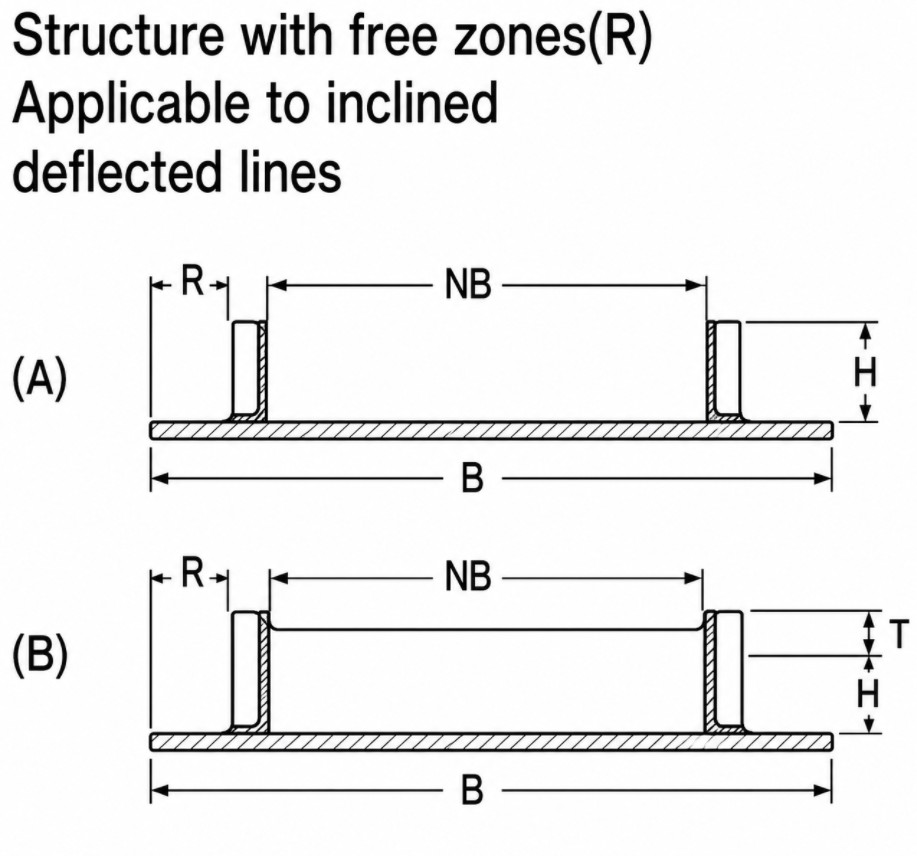

Standard specifications

(Note) We can manufacture other belt widths than the above as well. Please consult with us.

(Note) For NB of Type ES, the standard range is in the units of 100 mm.

(Note 1) About cover rubber types
Heat-resistant (black): This type is medium-temperature-resistant and applicable to conveyed material temperatures of 100°C or lower and belt surface temperatures of 70°C or lower (ambient temperatures of 60°C or lower).

(Note 2) For a total strength of 1250 kg/cm (1250 N/mm) or more, we provide a different design. Please contact us.

(Note 3) The belt body has square sides as a standard. However, we can also manufacture a type with side rubber (round sides).

(Note 4) We can also manufacture other cover rubber thicknesses than the above. Please consult with us.

(Note 5) The flame- and oil-resistant types are for measures against fire at oversized trash disposal centers. They are applicable to steep incline lines after a crusher. (Flame-resistant performance: Equivalent to those that passed the JIS flame-resistant test)
