ST3150 Steel Cord Conveyor Belt

CBC India's ST3150 steel cord conveyor belt represents the current outer boundary of commercially engineered steel cord belting — specified for overland conveying infrastructure in premier global super-mines where no lower ST grade delivers adequate safety factors at the system's rated operating tension, haul distance, and continuous throughput requirement. Per DIN 22131 and ISO 283, the "3150" designation guarantees a minimum breaking strength of 3,150 Newtons per millimeter of belt width, defining this belt's application domain: colossal rare-earth pipelines, hyper-scale gold mine conveying circuits, and mega-steelworks processing facilities where annual material tonnages are measured in the hundreds of millions and infrastructure replacement is not an operationally viable option.

Construction

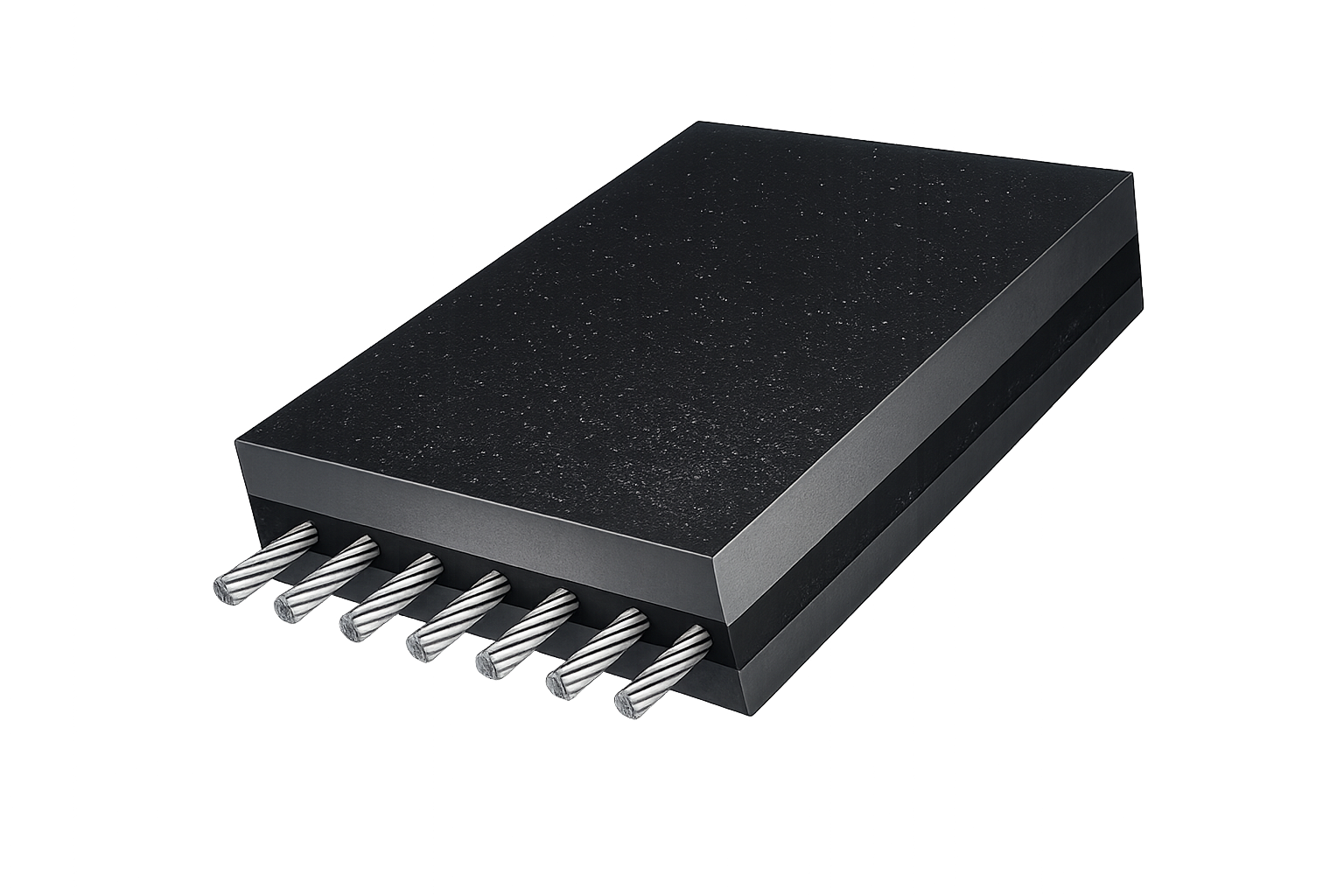

The ST3150's tensile core is built on galvanized steel cords in 7×19 strand configuration, with individual cord diameters up to 8.6 mm at a 15 mm pitch. Each cord delivers a minimum breaking force of approximately 50 kN, with supreme rubber penetration during vulcanization achieving complete wire-level encapsulation throughout the full cord cross-section. At the ST3150 tensile class, encapsulation quality is the single most consequential manufacturing variable: under operating tensions exceeding 2,700 PIW and flex cycle accumulations measured across decades of continuous service, any internal encapsulation deficiency progresses to corrosion-initiated fatigue fracture on a timeline that no maintenance programme can intercept. Total belt thickness runs 45–55 mm with a reference mass of 45 kg/m². Cover specifications range from 6–10 mm top and bottom depending on material duty profile, with minimum belt thickness of 25 mm maintained across all configurations. Belt widths extend to 3,800 mm with roll lengths exceeding 1,500 m per section. Minimum pulley diameters are specified at 1,250 mm.

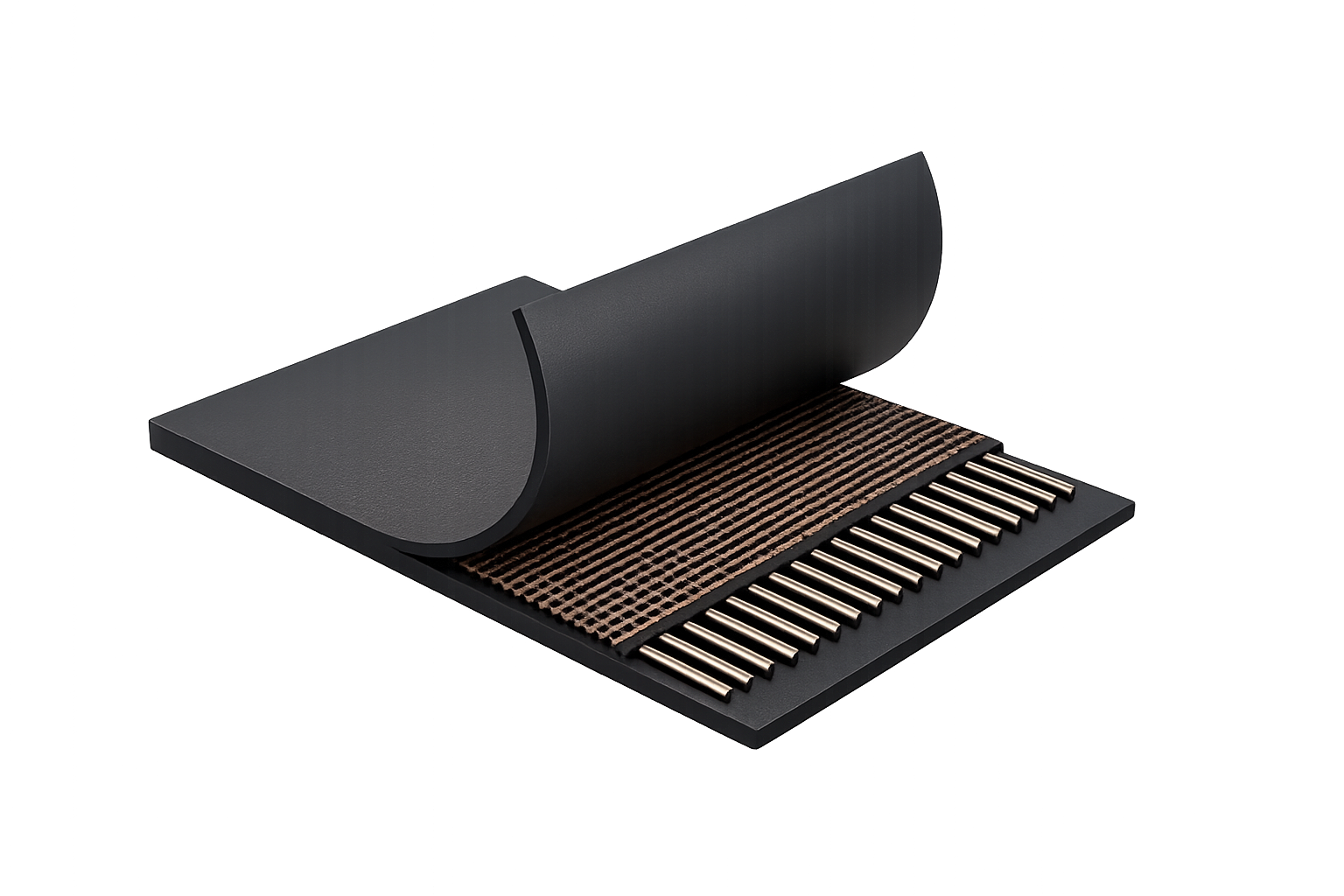

Top cover compounds are specified to DIN Grade Z as standard, with extreme heat-resistant formulations rated beyond 400°C for the most severe clinker, calcined ore, and molten material applications. Multi-layer rip protection constructions per DIN 22102 provide full transverse and longitudinal structural reinforcement. Flame-retardant variants comply with ISO 284 and EN 16974 for the deepest uranium shaft and extreme underground hard-rock installations.

Performance

Working elongation remains below 0.1% at rated tension, enabling fully automated tension control across single-flight hauls exceeding 15 km. Operating tensions surpass 2,700 PIW at conveying speeds up to 11.0 m/s. Superior troughability delivers volumetric throughput increases exceeding 90% over stiffer constructions, while the lightweight carcass architecture reduces drive power consumption by 50%+ against fabric ply alternatives. Impact tolerance extends to 800 mm mega-lump and molten material cascade loading without structural failure.

Installation and Maintenance

Multi-stage hot-vulcanized splices at 1,500+ mm splice length per DIN 22131 Part 3 restore 100% cord efficiency at every joint. In-service monitoring integrates advanced electromagnetic induction networks, hyperspectral rip detection, and satellite-linked remote surveillance for continuous non-destructive cord assessment without operational interruption. AI predictive analytics platforms fed by adaptive idler condition data and real-time tension monitoring identify developing fault signatures before unplanned stoppages occur. ST3150 belts achieve a documented service life exceeding 50 years across the world's most demanding and highest-value bulk material handling installations.

Technical specification of ST3150 Conveyor Belt

Standard Steel Cord Conveyor belt Range As per DIN 22131

Available Stocks of ST3150 conveyor belt
